Two grates, two jobs, nearly the same name
Lift the lid off a kettle and look down. Near the top of the bowl, resting on prongs, is the cooking grate: a flat round grid, about 21.5 inches across on a 22-inch grill, that holds the food. Several inches below it, close to the bottom of the bowl, is the charcoal grate: a smaller, much heavier grid — 17 inches on the same grill — that holds the fuel up off the ash so the bottom vent can feed air into the fire from underneath.
They fail for opposite reasons. The cooking grate fails from the outside in: you scrub it, you cook acidic things on it, water sits on it, the plating wears through and it rusts. The charcoal grate fails from the inside out: it lives in a fire, cycle after cycle, and the steel eventually thins until the bars snap. A cooking grate looks bad long before it is dangerous. A charcoal grate often looks fine until the day the pile of coals drops through it into the ash.

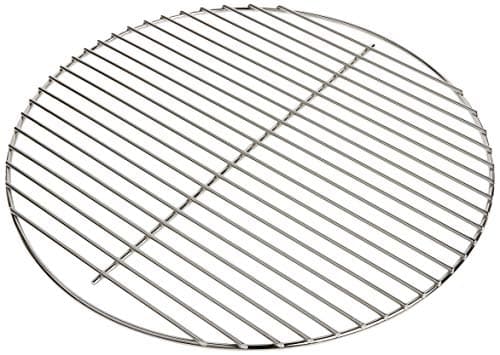

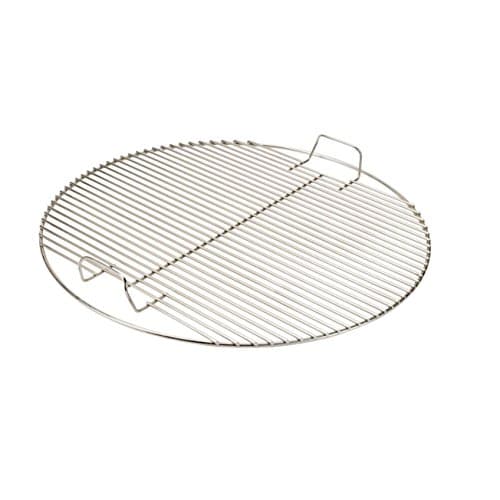

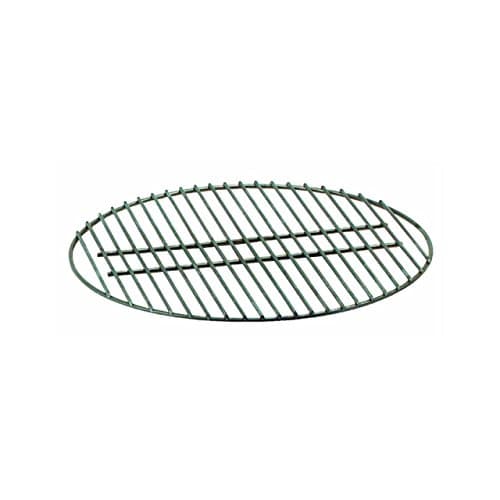

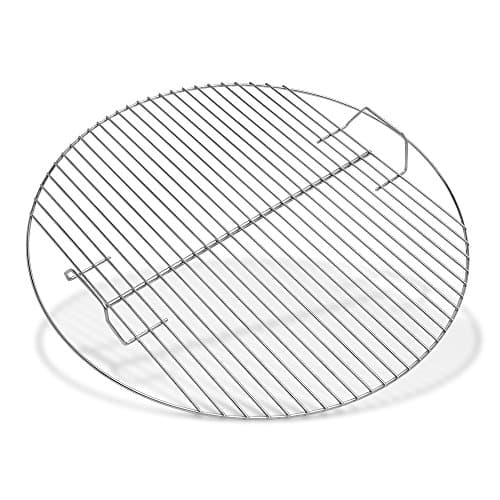

Weber’s own part numbers are the only reliable way to tell them apart, which is why every pick above carries one. On a 22-inch kettle: 7435 is the plain cooking grate, 7436 is the hinged cooking grate, and 7441 is the charcoal grate. On an 18-inch bowl, 7432 is the cooking grate and 7440 is the charcoal grate. On a 14-inch Smokey Joe, 7431is the cooking grate. Search the number, not the description, and you cannot get it wrong. This is also the FTC’s own advice for buying online — note the exact manufacturer or model number before you comparison shop.
Which one has actually failed?
Food sticks and the bars shed orange flakes. Cooking grate. If a wire brush or a foil ball is taking metal off rather than carbon, the plating has gone and the grate is now a rust source sitting under your dinner. Replace it.
The fire dies early, every time, no matter how you set the vents. Charcoal grate — or ash. Pull the cooking grate out, empty the bowl, and look at the grid under the coals. If the bars have thinned, bowed or broken, the fuel has been sitting in its own ash instead of above it, which smothers the fire from below. This is the most commonly misdiagnosed fault in charcoal grilling, and it gets blamed on the charcoal most of the time. Our charcoal grill not getting hot guide runs through the other eight causes in check order.
The grate will not sit flat and food slides. Warping, which is a thin-steel problem. Plated wire grates bow after enough searing fires. A heavier stainless or cast iron grate solves it permanently; another cheap plated grate will do the same thing in a few seasons.
The grate is black and crusted but the metal underneath is sound. Nothing has failed. Burn it off hot and scrape it — see how to clean a charcoal grill and the bristle-free brush picks. Carbon is not rust, and a seasoned grate cooks better than a new one.
Sizing: a “22-inch” grate is 21.5 inches
Grill sizes are the bowl, not the grate. A 22-inch Weber kettle takes a 21.5-inch cooking grate and a 17-inch charcoal grate. An 18-inch bowl takes a 17.5-inch cooking grate. A 14-inch Smokey Joe takes a 13.5-inch cooking grate. The numbers in the product titles on this page are the real diameters, which is the figure that decides whether the grate drops onto its prongs or sits proud and lets smoke out around the lid.
Three fit traps worth knowing. First, Weber states on both 22-inch listings that the parts do notfit the Smokey Mountain Cooker — a bullet smoker is 18 or 22 inches in name but a different casting, and its grates are separate parts. One exception runs the other way: the 18-inch cooking grate (7432) is listed as fitting the 18-inch Smokey Mountain’s uppercooking grate, which is handy if yours came out of storage bent. Second, “22.5 inch” and “22 inch” are the same Weber grill; the model was renamed, not resized. Third, if your kettle is not a Weber, measure before you trust a listing — see below.
Plated steel, 304 stainless or cast iron?
Plated steel is what nearly every charcoal grill ships with, and what Weber still sells as a replacement. Steel wire with a thin plating over it: cheap, light, conducts heat poorly, and the plating is the only thing between the steel and the weather. Treat it as a consumable. If you grill a dozen times a summer and store the grill under a cover, a plated grate will last years. Left out in the rain, it will not.

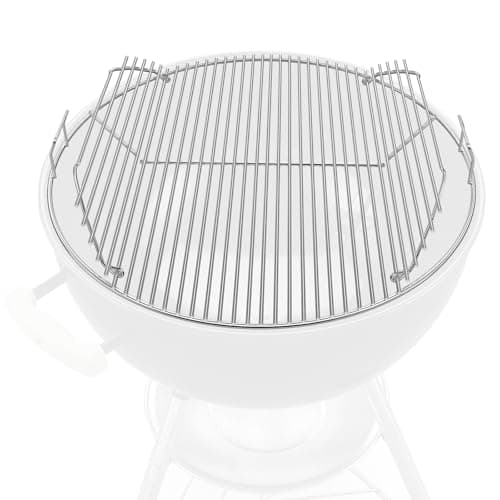

304 stainlesshas no coating to fail. That is the whole argument, and it is a good one: there is nothing to flake into food and nothing to wear through. The aftermarket now sells 304 stainless hinged grates for roughly what Weber charges for plated steel, which genuinely changes the calculation for anyone who has already replaced a grate once. What you give up is the maker’s fit guarantee and, in most cases, any stated warranty — the exception on this page is the SnS grate, whose listing states ten years.

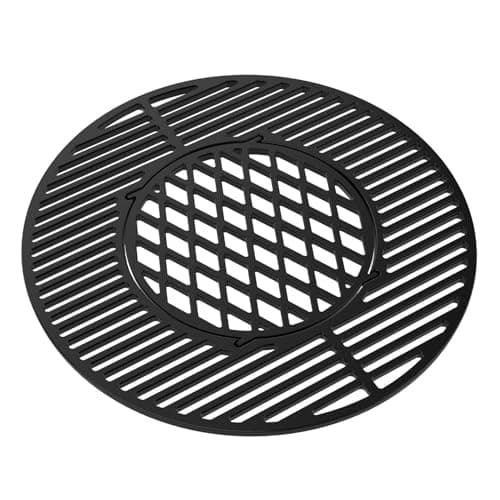

Cast iron is the only material here that changes the cooking rather than the lifespan. Heavy iron stores heat, so when a cold steak lands on it the bar does not drop in temperature the way thin wire does, and you get a real banded crust instead of pale stripes. The costs are honest and worth stating plainly: eight pounds to lift hot, ten extra minutes of preheat, and a surface that needs oiling and drying like a skillet or it rusts. At around seventy dollars on a kettle you already own, it is a cooking upgrade in the same bracket as the charcoal basketsthat concentrate the fire under it — and those two together do more for searing than either alone.
For the value buyer this site is written for, the order is simple. If the grill is cheap and the grate rusted, buy the cheap OEM part. If you are on your second rusted grate, buy stainless once. Buy cast iron only because you want better steak, not because you want the grate to last.
Hinged, spinning, or plain?
A plain grate is a disc. To add charcoal you either lift it off with tongs, food and all, or you do not add charcoal. For an hour of burgers that is fine.

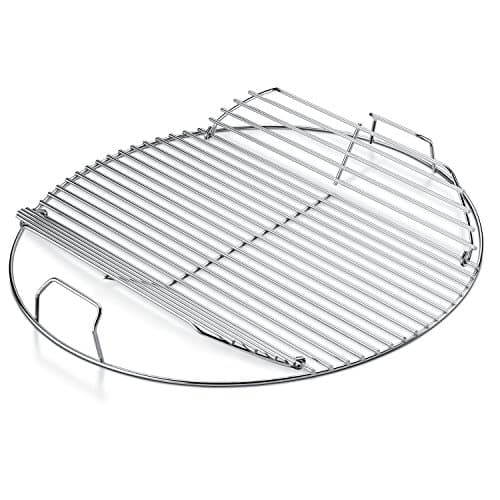

A hingedgrate has a flip-up flap at each edge: lift the flap, drop coals through, carry on. It matters on anything over about an hour — ribs, a pork shoulder, a snake-method burn that needs a mid-course handful. It is also what separates a Master-Touch from a plain Original Kettle, so a hinged grate is the cheapest way to close most of that gap on a grill you already own. The honest counter: the hinge gaps are wide enough to lose asparagus and shrimp through.

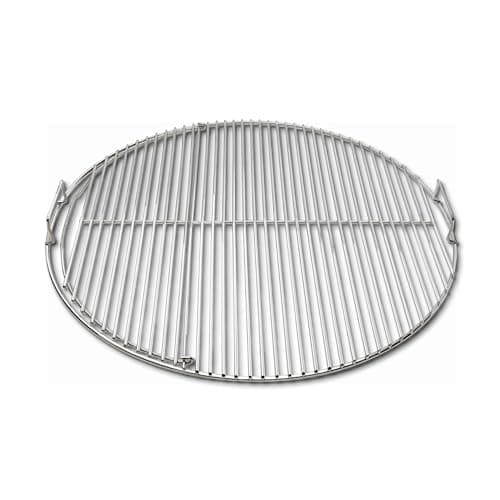

A spinninggrate is the specialist option. With the fire banked to one side, turning the grate moves food between the hot zone and the cool zone without picking anything up — eight chicken thighs rotate in one motion. If you cook two-zone most weekends it is a real convenience. If you cook over a full grate, it does nothing at all, and it costs about half a new kettle.
If you do not own a Weber
Weber parts are easy because Weber publishes numbers and sells them for decades-old grills. Other makers vary enormously. Before you buy anything:
Find the model number on the grill— usually a sticker or plate on the leg, bowl or firebox — and search the maker’s own parts page with it. Many budget brands do sell grates; they are just not merchandised. Photographing that plate is one of the day-one jobs in our new-grill checklist for exactly this reason.
Measure, do not trust “universal”. For a round grate, measure the grate seat across its widest point. For a barrel grill, measure the firebox opening in both directions. A round grate that is half an inch too wide will not sit on its prongs, and a rectangular grate that is half an inch too narrow will tip.
Barrel grills are a different problem.Rectangular grates are far less standardized than round ones, and many budget barrels — including ones with a height-adjustable charcoal pan — use a shape nobody makes aftermarket. If the maker no longer stocks the part, expanded steel sheet cut to size by a metal shop is the usual fix, and it is often cheaper than it sounds. Just be sure it is plain mild steel or stainless, never galvanized or plated zinc, which should never be heated near food.
When a new grate is the wrong purchase
A grate is worth buying when the rest of the grill is sound. It is not a way to rescue a grill that has already gone. Stop and price a replacement cooker if any of these are true:
The bowl or firebox has rusted through. A hole below the food is an air leak you cannot close with the vents, and on a painted barrel it usually means the steel has thinned everywhere, not just where it failed.
The lid will not sit true. If a warped or dented lid leaks all the way around, the vents no longer control the fire, and that is the whole mechanism of charcoal cooking. A new grate changes nothing.
The parts bill is approaching a better grill. Both grates plus a cover on a thin no-name barrel can get within range of a known-brand kettle, and we would rather you spent the money there. That is the same stopping rule as our cheap grill upgrades guide, and the whole point of our under-$100 roundup is that the floor for a grill worth keeping is not high.
Making the next one last
Grates rust for one reason: water sitting on bare metal. Everything useful follows from that.
Burn off, then brush, while it is hot. Carbon comes off a hot grate and skates on a cold one. A clean grate also does not hold the grease that traps moisture.
Oil the grate, not the food, before cooking. A thin wipe of a high-smoke-point oil on a hot grate is both a non-stick layer and a moisture barrier. On cast iron it is not optional.
Empty the ash after every cook. Wet ash is the most corrosive thing in a charcoal grill, and it sits directly against the charcoal grate. This is the single biggest factor in how long a fuel grate lasts.
Cover a cold, dry grill — never a warm or damp one. A cover over a damp grill is a humidity box. Our grill cover picks go into fit and breathability, which matter more than waterproofing.
Do all four and a plated grate lasts most of a decade. Skip the last two and a stainless grate will still outlive the bowl it sits in.
